Removing and installing sealing profile on roof frame - AR88.85-P-2000K

MODEL 208.3

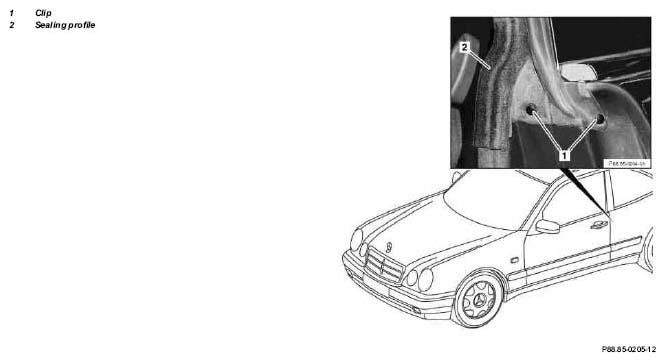

Fig 1: Identifying Sealing Profile On Roof Frame Remove/Install Components - Model 208.3
G04729686
REMOVING Removal
1 Remove clips (1) IMPORTANT Check clips, replace if necessary
2 Pull sealing profile (2) out of roof frame IMPORTANT Check sealing profile, replace, if necessary
INSTALLING Installation
3 Install sealing profile (2) on roof frame with installation wedge SPECIAL TOOL
IMPORTANT Ensure that sealing profile is properly seated in roof frame		 Figure
4 Install clips (1)
Fig 2: Identifying Installation Wedge (110 589 03 59 00)
G04729687
