Emergency call system loudspeaker, location/purpose - GF82.95-P-4203SX
MODEL 215.3, 220.0 /1 with CODE (383a) Tele-Aid fixed installation telephone
MODEL 215.3, 220.0 /1 with CODE (359) TELE AID emergency call system
Illustrated on model 215.3

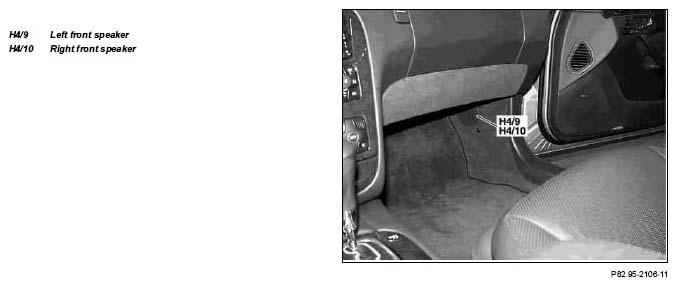

| Emergency call system loudspeaker, location | The left front speaker (H4/9) is located in the footwell of the driver at the lower branch-off to the A-pillar. The right front speaker (H4/10) is located in the footwell of the front passenger at the lower branch-off to the A-pillar. | ||
| Emergency call system loudspeaker, purpose | The communication in the event of a TELE AID call (emergency call, telediagnosis, MB information call) takes place via the left front speaker (H4/9) and the right front speaker (H4/10). This is necessary to ensure the voice output in case of emergency. |
