Electrical System -- Basic Knowledge -- 215 & 220 Chassis - 1 Of 2
>>
Basic Knowledge
>>
Wiper system (WS), function - GF82.30-P-0003S
>>
Wiper system (WS), location of components - GF82.30-P-0003-01SN
Wiper system (WS), location of components - GF82.30-P-0003-01SN

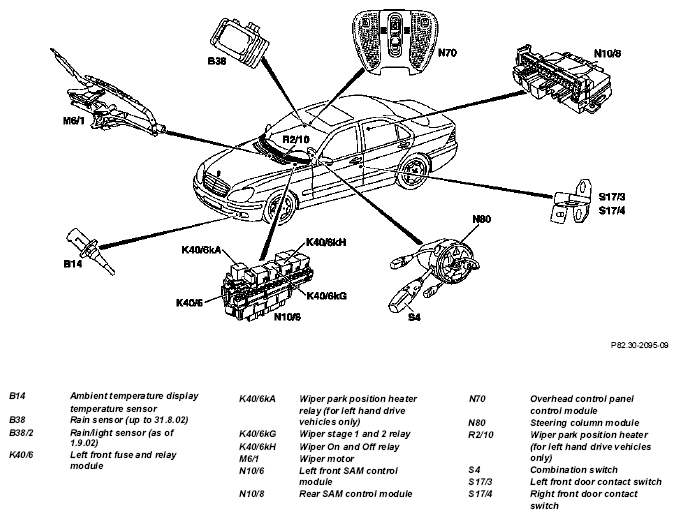

Fig 1: Identifying Wiper System Components Location - Shown On Model 220
Wiper system, location of components shown on Model 220
