Electrical System -- Basic Knowledge -- 215 & 220 Chassis - 1 Of 2
>>
Basic Knowledge
>>
Windshield washer, location of components - GF82.35-P-0001-01S
Windshield washer, location of components - GF82.35-P-0001-01S
Shown on model 220

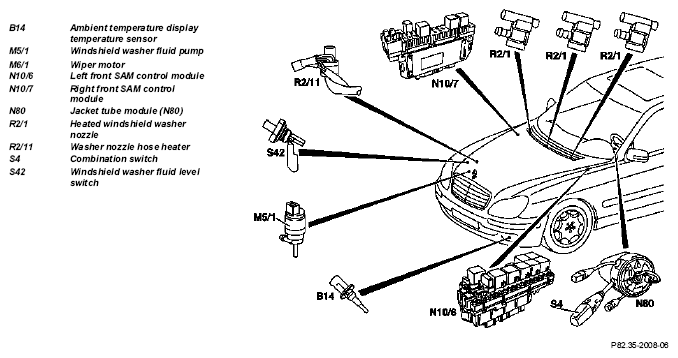

Fig 1: Identifying Windshield Washer Components Location - Shown On Model 220
