Voice control system (VCS), arrangement of components - GF82.70-P-0002-01EC

Illustrated on model 215

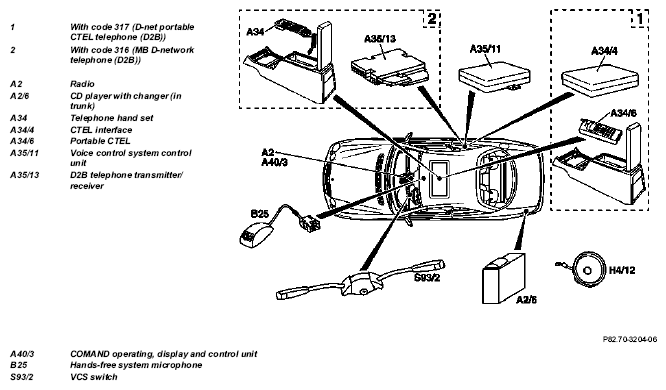

Fig 1: Identifying Voice Control System Arrangement Of Components - Illustrated On Model 215
G04735646

Shown on MODEL 220

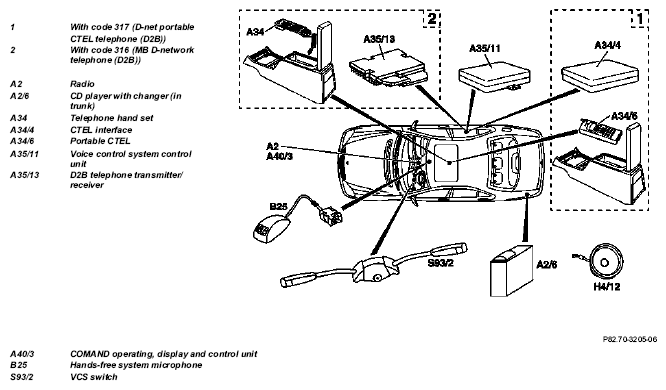

Fig 2: Identifying Voice Control System Arrangement Of Components - Shown On Model 220
G04735647
