Front Axle Floating Caliper

For front axle floating caliper, See Fig 1.

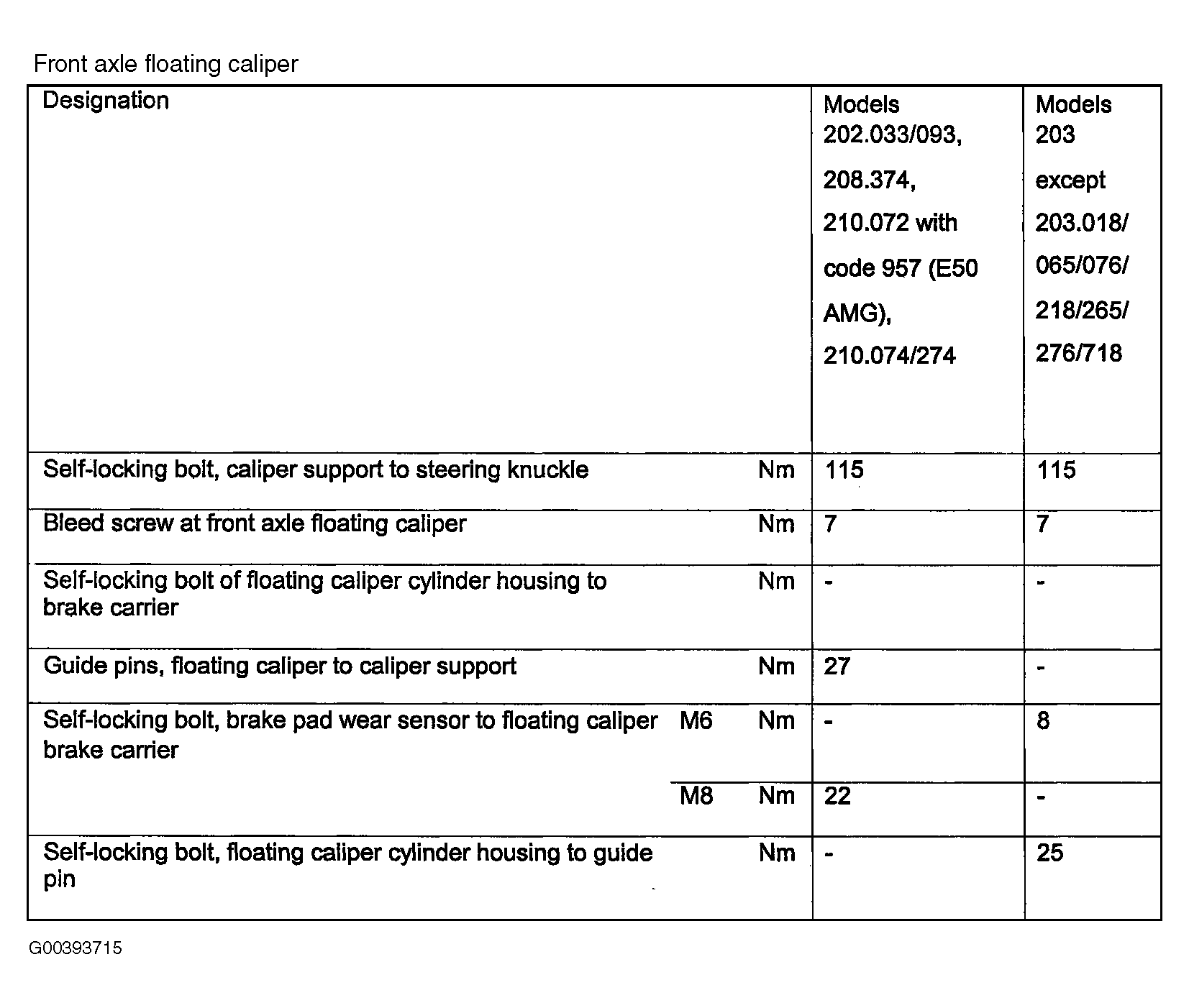

Fig 1: Front Axle Floating Caliper
G00393715Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
