Brake Discs, Brake Caliper Dust Shield

For brake discs, brake caliper dust shield, see Fig 1.

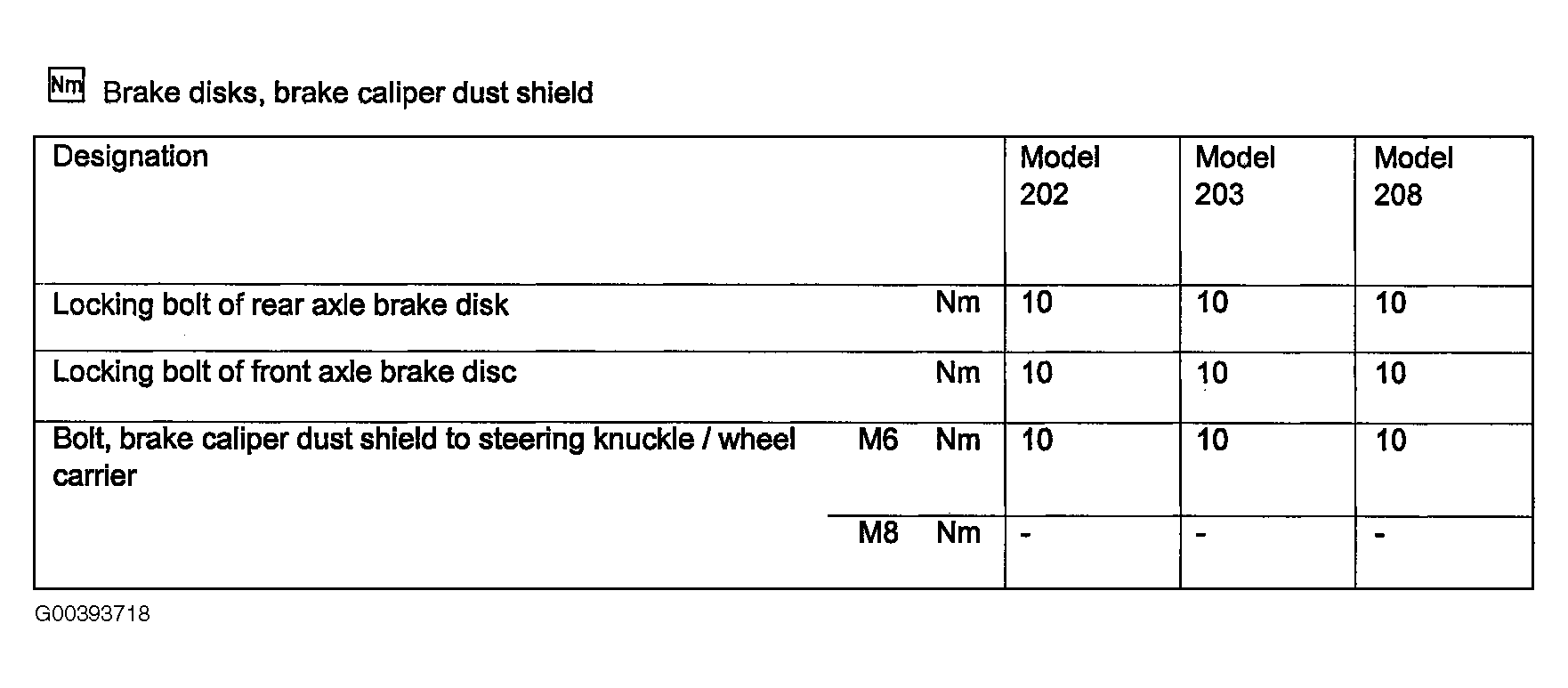

Fig 1: Brake Discs, Brake Caliper Dust Shield

G00393718

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
