Removing and installing cover on center console - AR68.20-P-2350P
MODEL 203

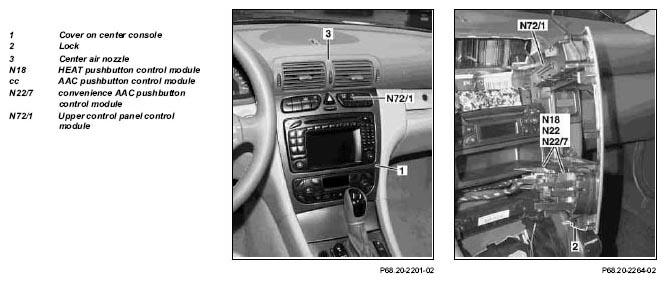

Illustrated on model 203.0
| Removing, installing | |||
|---|---|---|---|
| 1 | Remove center air nozzle (3) | AR68.10-P-1150P | |
| 2 | Remove ashtray at front of center console | AR68.20-P-2400P | |
| 3 | Open locks (2) in ashtray housing tunnel | ||
| 4 | Remove cover from center console (1) | ||
| 5 | Disconnect overhead control panel control module (N72/1) connectors at rear | ||
| 6.1 | Unlock connectors for heater push-button control module (N18) from rear, disconnect | ||
| 6.2 | Disconnect AAC push-button control module (N22) from rear | With code (580b) convenience automatic air conditioning | |
| 6.3 | Unlock AAC convenience push-button control module (N22/7) at rear, disconnect | With code (581b) convenience automatic air conditioning | |
| 7 | Remove cover from center console (1) | ||
| 8 | Install in the reverse order |
