Converting side paneling - AZ88.00-P-0001-04L

Preparation

  1. Remove side paneling.

    2. Assembly

  2. Reinstall AMG paneling in opposite order.

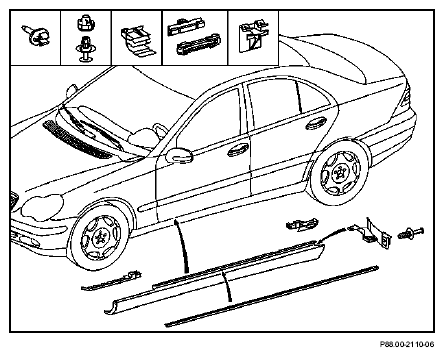

    Fig 1: Converting Side Paneling Components
    G04737584
