Converting front bumper - AZ88.00-P-0001-02K

Preparation

1. Remove standard bumper.
2. Remove headlight (1).
3. Remove internal component (2), detach bumper impact absorber (3), Parktronic cable harness (4), mounting rails (5).
4. Remove towing loop cover (7), windshield cleaning system rosette (6).
5. Remove protective strips (8), license plate molding (10), grilles (9).
   Fig 1: Converting Front Bumper Components - Preparation



Conversion

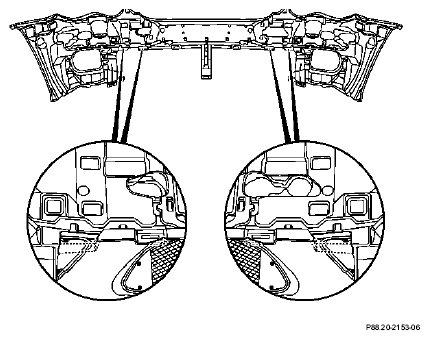

6. Trim enclosed internal component in crosshatched area.
   Fig 2: Converting Front Bumper Components - Conversion (1 Of 2)


7. Rivet extended wheelhouse lining on right and left-hand side.
   Fig 3: Converting Front Bumper Components - Conversion (2 Of 2)



Assembly

8. Assemble bumper in reverse order.
9. Rivet center rib between internal component and outer paneling.
10. Clip in grilles (9).



    The two brackets

    Parts No.: A203 626 07 14 and A 203 626 08 14 (body bracket) must be changed in the case of vehicles with equipment code 954 (Avantgarde).

    Fig 4: Converting Front Bumper Components - Assembly
