Central locking (CL), location of components - GF80.20-P-0005-01P
Central locking (CL), location of components - GF80.20-P-0005-01P

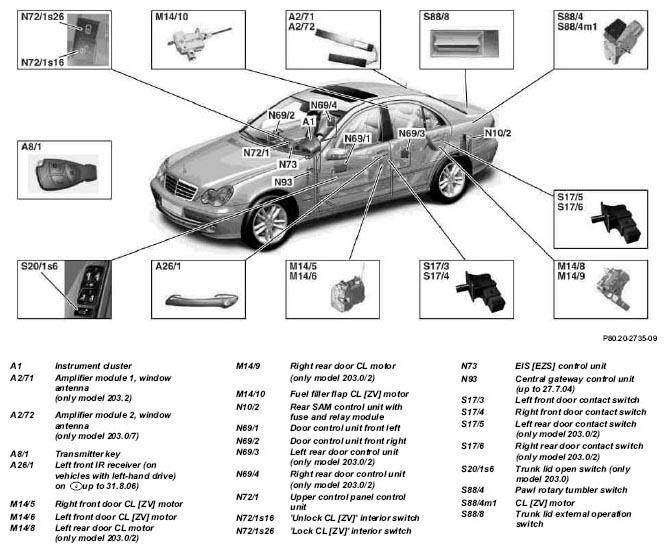

Fig 1: Identifying Central Locking Components Location
Shown on model 203.0
