Removal & Installation

NOTE: Letters and numbers in parenthesis correspond to letters and numbers in illustrations.

Press rubber mount (1b) out of rear axle carrier using Extractor Tool (01a, 01b, and 01c). See Fig 1 and Figure .
Install rubber mount with grease and lubricant.
Pull in rubber mount using Insertion Tool (01c, 01f, and 01g).

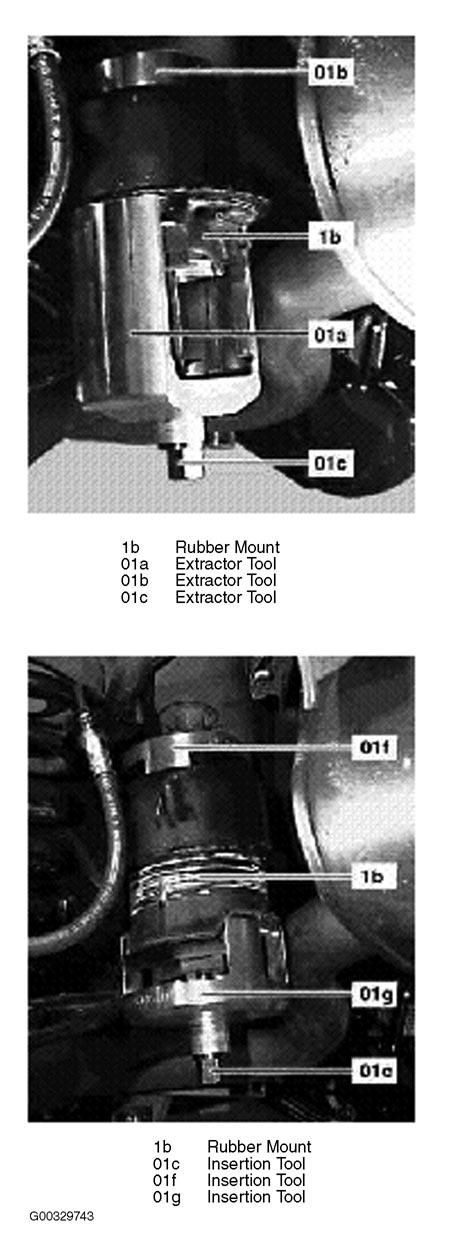

Fig 1: Removing & Installing Rear Rubber Mount In Rear

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
