Rear door power window switches, location/purpose/design/function - GF72.29-P-4104PP
MODEL 203.0 /2
Position

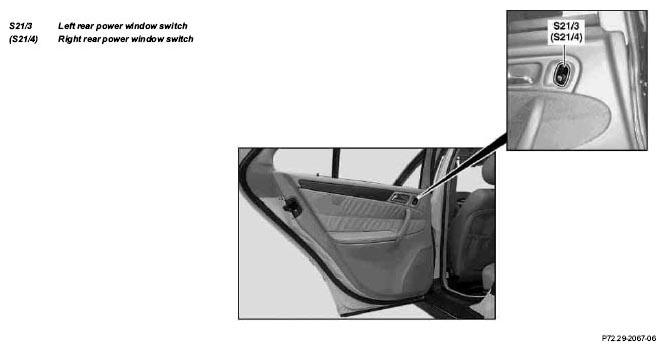

| Rear door power window switch, location | The left rear power window switch (S21/3) and right rear power window switch (S21/4) are located in the area of the inner door unlocking in the door paneling. | ||
| Rear door power window switches purpose | The left rear power window switch (S21/3) and right rear power window switch (S21/4) serve for entering a command for opening and closing the corresponding window. | ||
| Rear door power window switches, design | The left power window switch (S21/3) and right rear power window switch (S21/4) are designed as toggle buttons with five mechanical positions. | ||
| Rear door power window switches, function | 203.0, 203.2 | GF72.29-P-4104-02PP |
