Doors & Windows -- 203 Chassis
>>
Basic Knowledge
>>
Power windows (PW [EFH]) location of components - GF72.29-P-0003-01PP
Power windows (PW [EFH]) location of components - GF72.29-P-0003-01PP
Location of components shown on left side of model 203.0

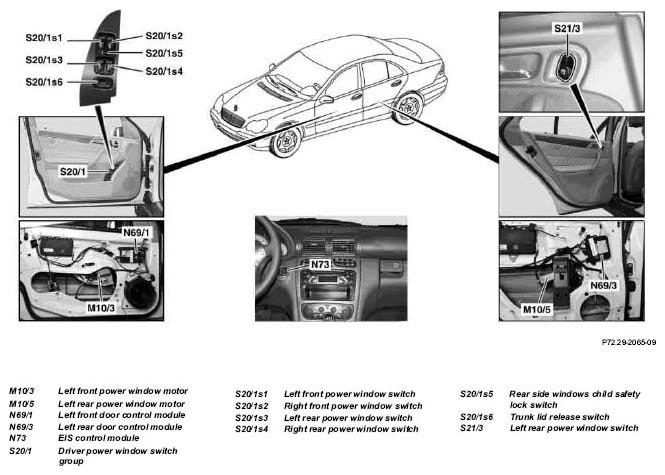

Fig 1: Identifying Power Windows (PW [EFH]) Components Location
