Preparing side roof paneling - AR65.10-P-1020-02PC

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1002-02A	Hole punching pliers, dia. 7 mm
WH58.30-Z-1001-03A	Round wire brush, braided, dia. 70 mm

WORKSHOP EQUIPMENT

WE58.40-Z-1001-03A	Drill (electric/pneumatic)
WE58.40-Z-1004-03A	Body saw (electric/pneumatic)

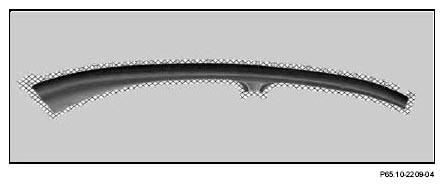

Fig 1: Identifying Side Roof Paneling Repair Area

1. Adapt new part to repair area.
2. Saw new part to size using body saw.
3. Transfer holes for plug welding from roof frame to new part.
4. Punch ø 7 mm holes using hole punch.
5. Grind side paneling connection surfaces to bare metal (checked areas). Grind spot weld flanges to bare metal on both sides. Coat insides of spot welding flanges with zinc dust paint.
