Bluetooth antenna, location/task - GF82.62-P-4200PMM
MODEL 203.7 as of 24.4.04 up to 31.5.06 with CODE (388) "Portable CTEL" UPCI telephone system except CODE (491) U.S. version

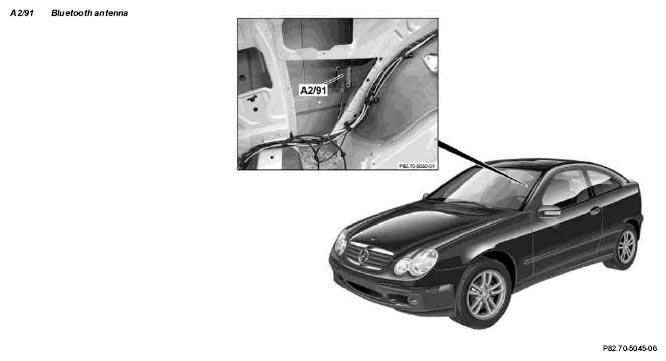

Fig 1: Identifying Bluetooth Antenna Location - Model 203.7 As Of 24.4.04 Up To 31.5.06 With Code (388) Except Code (491)
| Bluetooth antenna, location | The Bluetooth antenna (A2/91) is installed at the rear right wheelhouse in the passenger cell behind the paneling. | ||
| Bluetooth antenna, task | Simple and fast wireless integration of modern communication devices, such as laptop or headset. |
