PTS control module, location - GF54.65-P-4100-01AB
PTS control module, location - GF54.65-P-4100-01AB
Models 215, 220 with code (220a) Parktronic system (PTS)
Shown on Model 220

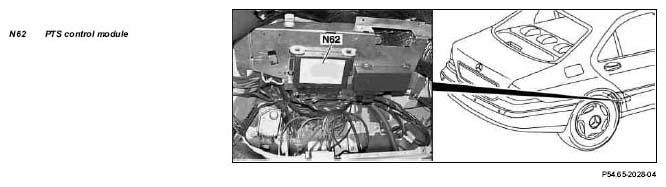

Fig 1: Identifying PTS Control Module Location - Shown On Model 220
