Component description for an engine diagnosis indicator lamp - GF54.30-P-5010V

MODEL 203 with ENGINE 272.920 except CODE (494) USA version

MODEL 211 with ENGINE 272.922 except CODE (494) USA version

MODEL 203, 209 with ENGINE 272.940 except CODE (494) USA version

MODEL 203 with ENGINE 272.941 except CODE (494) USA version

MODEL 171 with ENGINE 272.942 except CODE (494) USA version

MODEL 211 with ENGINE 272.943 except CODE (494) USA version

MODEL 211 with ENGINE 272.944 except CODE (494) USA version

MODEL 251 with ENGINE 272.945 except CODE (494) USA version

MODEL 221 with ENGINE 272.946 except CODE (494) USA version

MODEL 203, 209 with ENGINE 272.960 except CODE (494) USA version

MODEL 171 with ENGINE 272.963 except CODE (494) USA version

MODEL 211, 219 with ENGINE 272.964 except CODE (494) USA version

MODEL 221 with ENGINE 272.965 except CODE (494) USA version

MODEL 230 with ENGINE 272.966 except CODE (494) USA version

MODEL 164, 251 with ENGINE 272.967 except CODE (494) USA version

MODEL 203 with ENGINE 272.970 except CODE (494) USA version

MODEL 211 with ENGINE 272.972 except CODE (494) USA version

MODEL 221 with ENGINE 272.975 except CODE (494) USA version

MODEL 221 with ENGINE 273.922 except CODE (494) USA version

MODEL 164 with ENGINE 273.923 except CODE (494) USA version

MODEL 221 with ENGINE 273.924 except CODE (494) USA version

MODEL 164 with ENGINE 273.943 except CODE (494) USA version

MODEL 211, 219 with ENGINE 273.960 except CODE (494) USA version

MODEL 216, 221 with ENGINE 273.961 except CODE (494) USA version

MODEL 211 with ENGINE 273.962 except CODE (494) USA version

MODEL 164, 251 with ENGINE 273.963 except CODE (494) USA version

MODEL 230 with ENGINE 273.965 except CODE (494) USA version

MODEL 209 with ENGINE 273.967 except CODE (494) USA version

MODEL 221 with ENGINE 273.968 except CODE (494) USA version

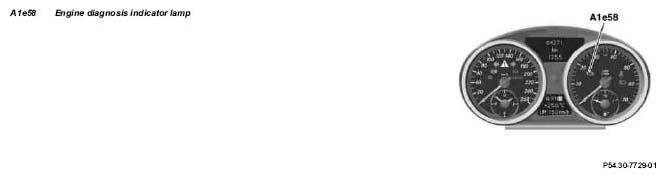

Shows model 171

Location

The engine diagnosis indicator lamp (engine symbol) is located in the instrument cluster.

Task

To indicate faults in the fuel injection system.

Function

The indicator lamp is actuated by the instrument cluster via a CAN message from the engine control unit. To check the function it lights up with ignition ON and as of an engine speed of approx. 500 rpm for approx. 1 s. If there is no fault, the indicator lamp goes out
