Removing, installing rear seat belt buckle - AR91.40-P-1516P

MODELS 203.0 /2 /7 with CODE (287a) Through-loading feature

Shown for code (287a) through-loading feature Model 203.0

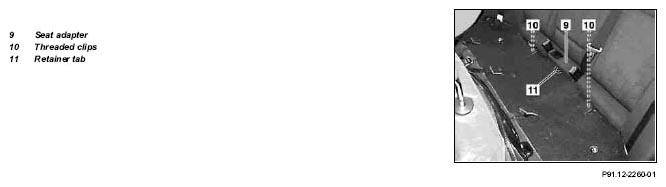

Fig 1: Identifying Seat Adapter, Threaded Clips And Retainer Tab - Shown For Code (287A) Through-Loading Feature Model 203.0

Shown for code (287a) through-loading feature Model 203.0

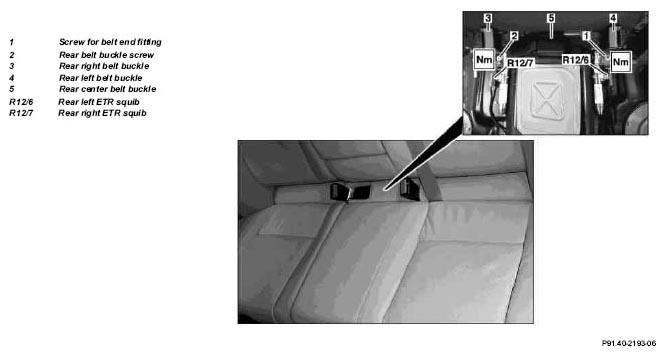

Fig 2: Identifying Rear Seat Belt Buckle Remove/Install Components - Shown For Code (287A) Through-Loading Feature Model 203.0

	Removing, installing
	Risk of injury  when carrying out test or repair work on airbag or emergency belt tensioner units	Store airbag units with expulsion area on top, do not subject to temperatures above 100°C. Interrupt power supply when working on such units.	AS91.00-Z-0001-01A
	Important instructions for performing repair, body work and welding on vehicles with airbag and emergency belt tensioner units	Models 203, 215, 220	AH91.00-P-0002-01M
	Evaluation of airbag and emergency belt tensioner units in vehicles involved in an accident	Models 129 as of 1.7.93, 163, 168, 170, 202 as of 1.7.93, 203, 208, 210, 215, 220, 463, 638, 901, 902, 903, 904	AH91.00-P-0006-01B
	Legal regulations concerning the handling and storage of airbag and emergency belt tensioner units	Models 124, 129, 140, 163, 168, 170, 202, 203, 208, 210, 215, 220, 314, 316, 318, 461, 463, 638, 901, 902, 903, 904, 950, 952, 953, 954, 970, 972, 974, 975, 976	AH91.00-P-0004-01A
1	Remove rear seat cushion	Model 203.0 except code (287a) through-loading feature	AR91.12-P-1020PC
1	Release rear seat cushion and fold forwards	Model 203.0 for code (287a) through-loading feature. Models 203.2/7
2	Unclip seat adapter (9)	Model 203.0 for code (287a) through-loading feature. Models 203.2/7 Lay sealing felt aside and pull seat adapter forwards at the screw clips (10).
3	Move seat adapter (9) out of retainer tab (11)	Model 203.0 for code (287a) through-loading feature. Models 203.2/7 Press to the rear in the center.
4	Remove seat adapter (9)	Model 203.0 for code (287a) through-loading feature. Models 203.2/7 Pay attention to retainer tab (11).
5	Release and remove connectors	Rear left emergency belt tensioner squib connectors (R12/6), rear right emergency belt tensioner squib connectors (R12/7).
6	Unscrew screws (1)	Model 203.7 belt end fitting not fitted. Installation:  ensure that the clamping bracket is locked.
		Screw at belt end fitting	*BA91.40-P-1001-01A
7	Unscrew screw (2)	Installation:  ensure that the clamping bracket is locked.
		Screw on rear belt buckle	*BA91.40-P-1007-01A
8	Remove belt buckles (3, 4, 5)	Model 203.7 rear center buckle (5) not fitted. If the belt buckle with emergency belt tensioner (3, 4) is replaced, the defective unit must be properly disposed of: ↓
	Notes on disposal of airbag and emergency belt tensioner units		OS91.00-P-0001-01A
		Make emergency belt tensioner units unusable.	AR91.40-P-0611A
9	Install in the reverse order
