The spring in the inertia reel can pose an injury hazard
when the tension is released and it uncoils. |
Never disassemble inertia reels |
AS91.00-Z-0002-01A |
| 1 |

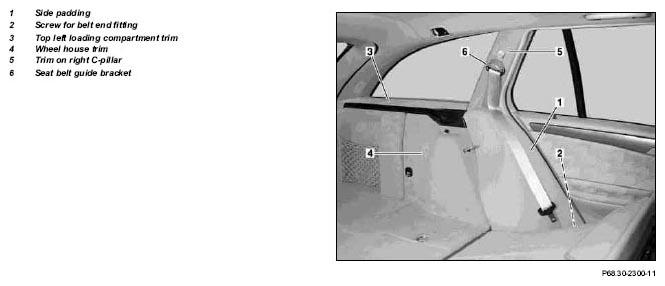

Remove side padding (1) |
|
AR91.12-P-1710P |
| 2 |
Unscrew screw (2) from belt end fitting |
 Installation:
ensure that the belt end fitting engages. |
|
| |
|
 |
*BA91.40-P-1001-01A |
| 3 |
Remove top left loading compartment side trim (3) |
|
|
| 4 |
Remove left wheel house (4) trim |
|
|
| 5 |
Remove C-pillar (5) trim |
Installation:
ensure that seat belt guide bracket is correctly seated (6) |
AR68.30-P-4490PA |
| |
|
|
*BA91.40-P-1005-01A |
| 6 |

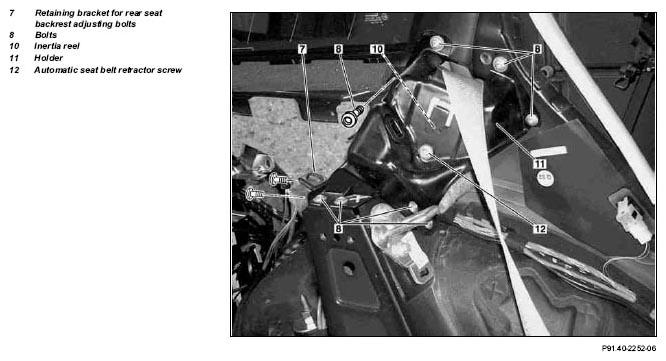

Remove retaining bracket for rear seat backrest (7) adjusting bolt |
|
|
| 7 |
Unscrew screws (8) from holder (11) |
|
|
| 8 |
Unscrew screw (12) from left automatic belt reel (10) |
Installation:
observe various versions (left/right) of automatic belt reel and proper seat in catch. Noises from the automatic belt reel when rolling up belt are normal. The only available response to negative customer feedback regarding unacceptable noise levels is to replace the safety belt assembly in its entirety.
Never use oil or grease to eliminate noises. Inertia reels that have been opened are no longer under warranty! |
*BA91.40-P-1006-01A |
| 9 |
Install in the reverse order |
|
|
