Remove head restraints - AR91.16-P-1770P

MODELS 203, 209.3

Shown in Model 203

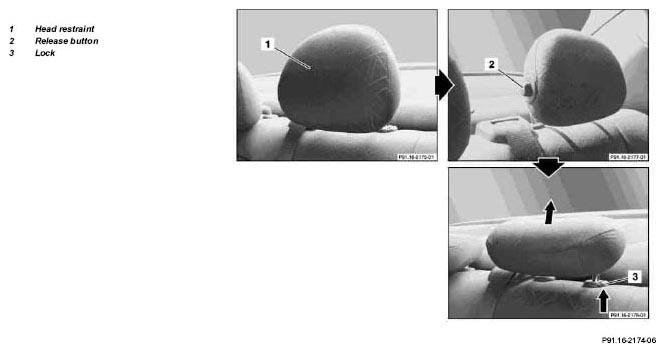

Fig 1: Removing Head Restraints - Shown In Model 203
G04738243
REMOVINGINSTALLING Remove/install
1 Press release button (2) and fold down head restraint (1)
2 Press lock (3) and pull out head restraint (1)
3 Install in the reverse order
