Noises from wind deflector of panorama sliding roof - AF77.20-P-1003AG

MODEL 203.7

Damage code	Cause	Remedy
	Cause 1:	Remedy 1:
78 104	Dirt below sealing on wind deflector.	1 Clean contact surface between wind deflector (1) and seal (2).
		2 Coat contact surface with lubricant.
	Cause 2:	Remedy 2:
78 104	Spring for wind deflector mechanism.	1 Unclip cover (3) above spring. Unclip cover (3) at front first, then remove toward rear.
		2 Coat spring (4) with lubricant paste.

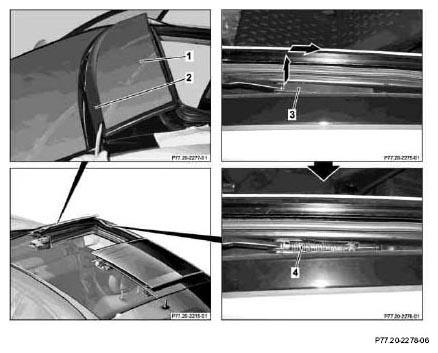

Fig 1: Identifying Noises From Wind Deflector Of Panorama Sliding Roof

PARTS ORDERING NOTES

Part no.	Designation	Quantity
001 989 50 51	Lubricant	As required
001 989 46 51	Lubricant	As required
