Noises from sun shade when open - AF77.20-P-1002AG
MODEL 203.7
| Damage code | Cause | Remedy | |
|---|---|---|---|
| 78 182 | Roller sun blind makes contact with guide bracket in open state causing rattling noises. | 1 Open sun shade (1) completely. | |
| 2 Slightly pull sun shade (1) downward in center. | |||

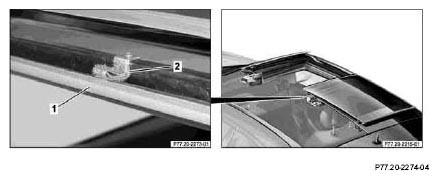

| 3 Glue felt on guide bracket (2) (see figure). |
PARTS ORDERING NOTES
| Part no. | Designation | Quantity |
|---|---|---|
| 001 983 23 10 | Self-adhesive felt | As required |
