Removing and installing roof railing - AR77.40-P-5000PA
MODEL 203.2
Roof railing with mounting consoles
Fig 1: Identifying Roof Railing Remove/Install Components - Roof Railing With Mounting Consoles (1 Of 2)

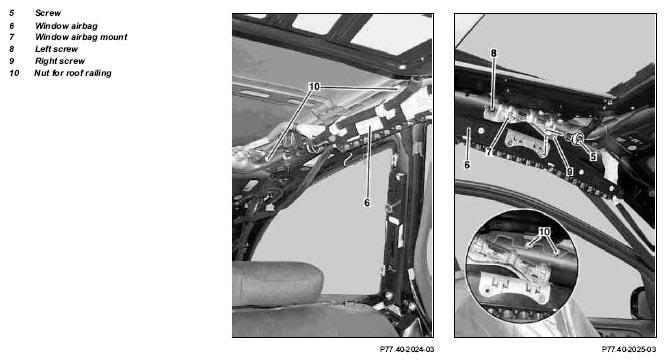

Fig 2: Identifying Roof Railing Remove/Install Components - Roof Railing With Mounting Consoles (2 Of 2)
| Removing, installing | |||
|---|---|---|---|
| 1 | Withdraw ignition key | ||
| 2 | Remove headliner | AR68.30-P-4300PA | |
| 3 | Unscrew screw (5) | ||
| 4 | Unclip window airbag (6) out of mount (7) | Installation: Window airbag (6) should catch audibly in mount (7). | |
| 5 | Loosen mount (7) and press downward | ||
| 6 | Unscrew nut for roof railing (10) | ||
| 7 | Remove roof railing (1) with mounts (2, 3, 4) | ||
| 8 | Install in the reverse order |
