Removing and installing paneling on sliding/pop-up roof - AR77.20-P-0500P

MODEL 203.0 /2 with CODE (414a) Electric glass sliding/pop-up roof

Illustrated on Model 203.0

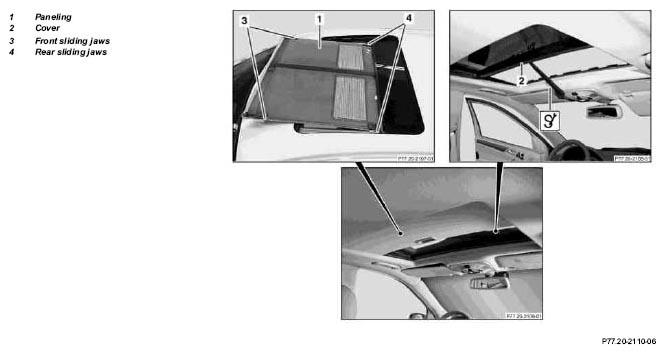

Fig 1: Identifying Paneling On Sliding/Pop-Up Roof Remove/Install Components

	Removing, installing
1	Push paneling (1) toward rear
2	Move sliding/pop-up roof approx. 20 cm toward rear
3	Remove cover (2)	Model 203.0: Press cover (2) away in center with plastic wedge before removal Model 203.2: Press cover (2) away at center and side with plastic wedge before removal. Installation:  Position cover from inside to outside.
		Assembly wedge	Fig 2
4	Move sliding/pop-up roof completely toward rear.
5	Slide paneling (1) forward
6	Unhook sliding jaws (3, 4) from sliding rail	When unhooking push paneling (1) to side.
7	Remove paneling (1)
8	Install in the reverse order

Fig 2: Identifying Assembly Wedge (110 589 03 59 00)
