Remove, install sliding roof drive - AR77.20-P-1800P

MODEL 203.0 /2 with CODE (414a) Glass electric sliding/tilting roof

Shown on Model 203.0

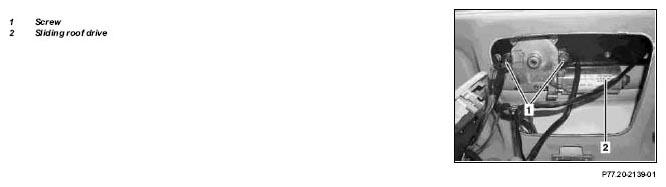

Fig 1: Identifying Screw And Sliding Roof Drive

G04735374

	Removing, installing
1	Close sliding/pop-up roof
2	Withdraw ignition key
3	Remove overhead control panel control module	Only cockpit/roof plug connection (X 18/23).	AR82.20-P-1000P
4	Unscrew screws (1)		*BA77.20-P-1002-01A
5	Take off sliding roof drive (2)
6	Install in the reverse order
7	Synchronize sliding/tilting roof	To synchronize move sliding/pop-up roof to pop-up position and hold switch down for 1s.

TORQUE SPECIFICATION

ELECTRIC SLIDING ROOF

Number	Designation			Model 203.0/2
BA77.20-P-1002-01A	Screw on sliding roof drive	TORX	Nm	4
BA77.20-P-1002-01A	Screw on sliding roof drive	Hexagon socket	Nm	4
