Removing and installing dividing wall on upper firewall - AR62.20-P-1221A
MODELS 203, 209
| Remove/Install | |||
| Risk of explosion from hydrogen gas. Risk of poisoning and caustic burns from swallowing battery electrolyte. Risk of injury to eyes and skin suffering caustic burns from battery electrolyte or from contact with damaged lead acid batteries. | No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Pour battery electrolyte only into suitable and appropriately marked containers. |
AS54.10-Z-0001-01A | |
| 1 | Disconnect ground cable of battery | ||
| Notes on battery | AH54.10-P-0001-01A | ||
| Model 203 | AR54.10-P-0003P | ||
| Model 209 | AR54.10-P-0003Q | ||
| Risk of injury in the form of trapping or crushing, or even severing of limbs, if caught in windshield wiper mechanism | Always remove ignition key when working on windshield wiper mechanism. | AS82.30-Z-0001-01A | |
| 2 | Remove wiper system | AR82.30-P-6400P | |
| Risk of injury
to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning from swallowing coolant. |
Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage bottles. Wear protective gloves, protective clothing and eye protection. |
AS20.00-Z-0001-01A | |
| 3 | Drain coolant | AR20.00-P-1142PR | |

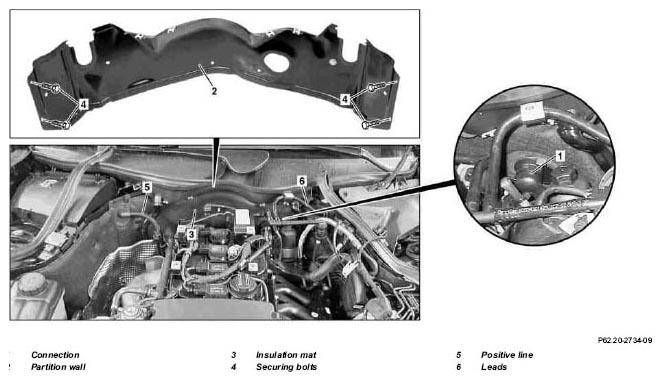

| 4 | Separate coolant line from connection fittings (1). | ||
| 5 | Loosen connection fitting (1) from dividing wall (2). | ||
| 6 | Loosen insulating mat (3) from dividing wall and lay down on right side of vehicle. | ||
| 7 | Disconnect positive line (5) from battery and pull out of dividing wall (2) upward. | ||
| 8 | Pull wiring harness (6) out of dividing wall (2) upward. | ||
| 9 | Unscrew mounting screws (4) and remove dividing wall (2) from firewall | ||
| 10 | Install in the reverse order |
