Remove, install crankshaft position sensor - AR15.12-P-2133GS

ENGINE 111.951

ENGINE 111.955

ENGINE 111.958

ENGINE 111.983

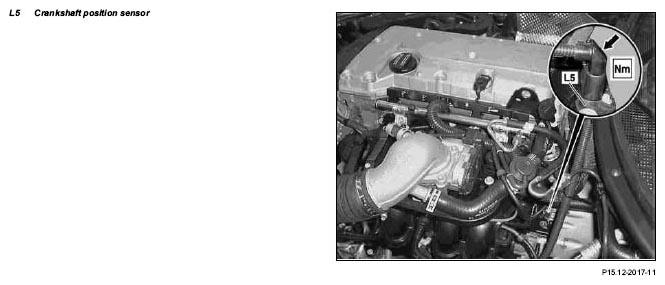

Fig 1: Identifying Crankshaft Position Sensor

	Removing, installing
1	Remove engine compartment paneling	Only model 203 with engine 111.951/955	AR61.20-P-1105P
2	Unplug connector (arrow) from crankshaft position sensor (L5)
3	Unscrew crankshaft position sensor retaining bolt (L5)		*BA15.10-P-1001-03A
4	Remove crankshaft position sensor (L5)	Installation  : Replace seal of crankshaft position sensor.
5	Install in the reverse order
6	Carry out re-initializing of ME control module	Re-initializing must only be performed with Star Diagnosis in the menu point "Control module adaptation" if the crankshaft position sensor has been replaced.

POSITION SENSOR

Number	Designation		Engine 111.951/ 955/958/ 983
BA15.10-P-1001-03A	Crankshaft position sensor to engine block	Nm	8
