Removing and installing air cleaner - AR09.10-P-1050GS

ENGINE 111.958 /983

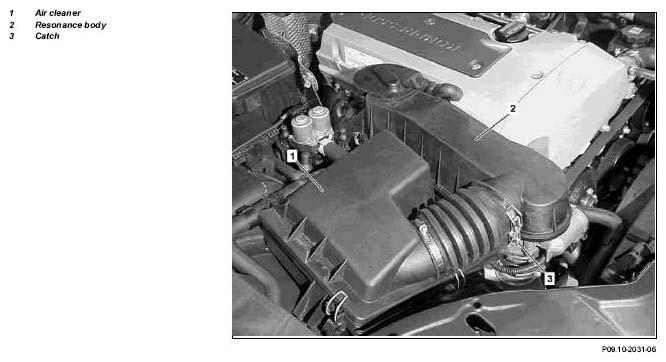

Fig 1: Identifying Air Cleaner Remove/Install Components
G04743401
REMOVINGINSTALLING Removing, installing
1 Open catch (3)
2 Lift air cleaner housing (1) and pull it out of the rubber mounts
3 Take off air cleaner housing (1) and at the same time detach it from the resonance body (2)
4 Install in the reverse order
