Removing and installing intake air scoop - AR09.10-P-8221GS

ENGINE 111.958 /983

Model 170

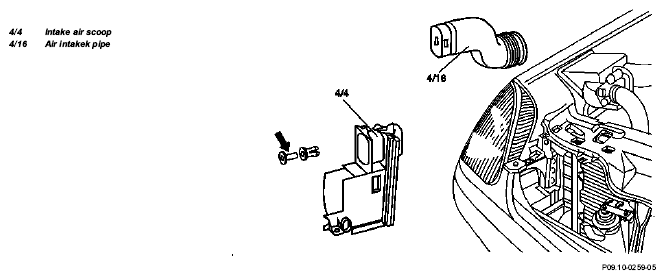

Fig 1: Identifying Intake Air Scoop And Air Intake Pipe - Model 170, Engine 111.958 /983
G04743406
REMOVINGINSTALLING Removing, installing
1 Remove radiator grille Pull out locking pins (arrow)
2 Take out intake air scoop NOTES 2 pins
3 Take out air intake pipe
4 Install in the reverse order
