Removing and installing intake air scoop - AR09.10-P-8221G

ENGINE 111.920 /921 /940 /941 /943 /944 /945 /946 /947 /960 /961 /973 /974 /975 /977

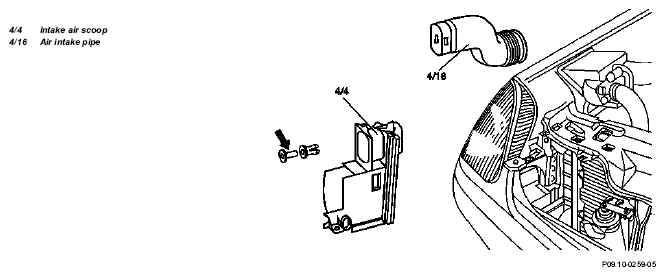

Fig 1: Identifying Intake Air Scoop Remove/Install Components

Model 170

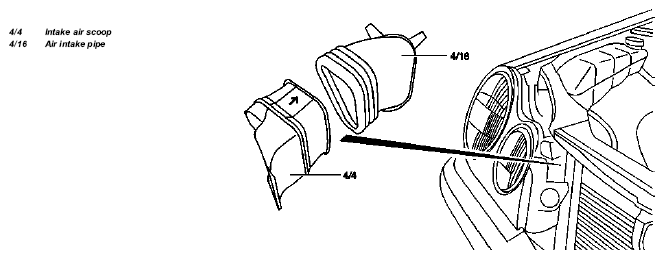

Fig 2: Identifying Intake Air Scoop And Air Intake Pipe - Model 170

Model 210 with engine 111

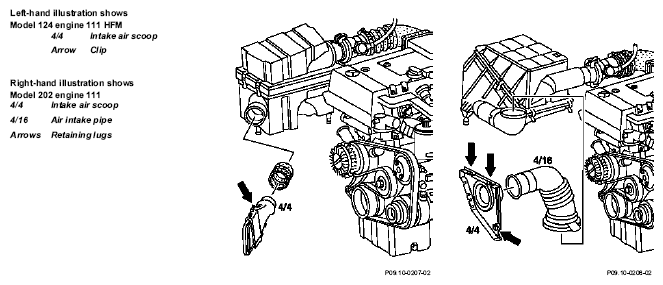

Fig 3: Identifying Intake Air Scoop And Air Intake Pipe - Model 210 With Engine 111

Model 163 with engine 111

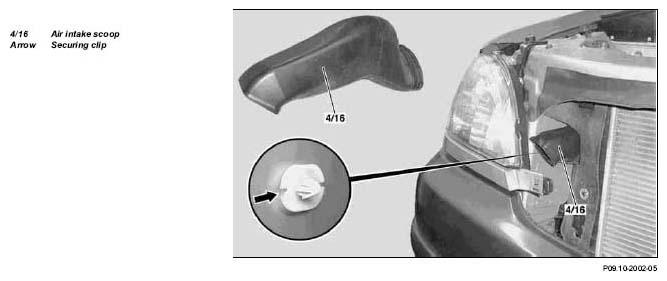

Fig 4: Identifying Intake Air Scoop And Air Intake Pipe - Model 163 With Engine 111

Fig. item, etc.	Work instructions
	Remove air cleaner	Model 163  Press together securing clip (arrow)	AR09.10-P-1050G
	Radiator grille	Model 170  Pull out locking pins (arrow) Model 202  Release retaining lugs (arrows) Model 210  Press forward out of catch
4/4	Intake air scoop	Model 124  Press clip (arrow) down
4/16	Air intake pipe
