Removing and installing charge air cooler - AR09.41-P-6817GS

ENGINE 111.958 /983

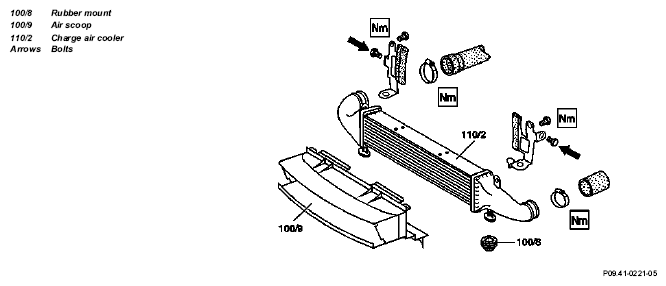

Fig 1: Identifying Charge Air Cooler Remove/Install Components - Engine 111.958 /983

	Removing, installing
1	Remove radiator grille
2	Remove front bumper		AR88.20-P-2000G
3	Unscrew bolts (arrows)
4	Remove air scoop (100/9)	Installation  : ensure that the air scoop locks in place at the charge air cooler.
5	Remove charge air cooler (110/2)	Inspect rubber mounts (100/8), replace if necessary.
6	Thoroughly clean connection points of hose clamps	If connection points are not cleaned, charge air hoses and pipes may jump off during operation.
7	Install in the reverse order
