Removing and installing compressor - AR09.50-P-4705GS
ENGINE 111.958 /983
Modification notes
| 1.9.00 | Figure revised from 20 Nm to 21 Nm | Figure in BA09.50-P-1001-01A revised for Engine 111.955/958/983 |
*BA09.50-P-1001-01A |
| Removing, installing | |||
| 1 | Remove intake and discharge fittings | ||
| 2 | Remove grooved V-belt for compressor. | AR13.21-P-1202A | |
| 3 | Check grooved V-belt and pulley or damage, replace as indicated. | Refer to service manual or samples of damage patterns on grooved V-belts. | |

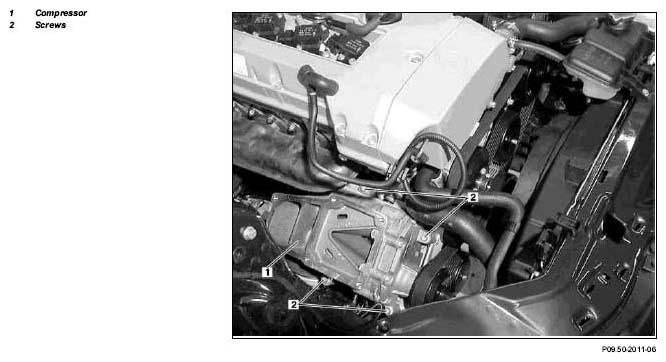

| 4 | Unscrew the bolts (2) and remove the compressor (1). | *BA09.50-P-1001-01A | |
| 5 | Reverse the removal sequence to install. |
| Number | Designation | Engine 111.943/944/947/973/975 | Engine 111.955/958/983 | |
|---|---|---|---|---|
| BA09.50-P-1001-01A | Attachment bolt, compressor to bracket | Nm | 21 | 21 |
