Checking compressor oil level, adjusting to correct level - AR09.50-P-6005A

ENGINE 111.943 /944 /947 /973 /975

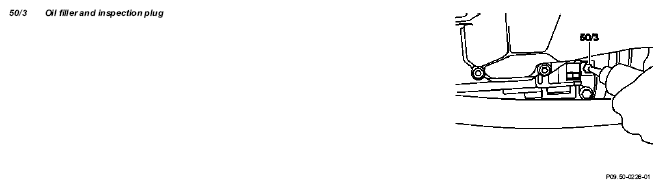

Fig 1: Adjusting Compressor Oil Level To Correct Level

Fig. item, etc.	Work instructions
	Remove air cleaner	Disconnect suction and compressor pipe at compressor and seal openings at compressor	AR09.10-P-1050G
	Compressor special oil		*BR00.45-Z-1013-06A
	Oil filler and inspection plug		*BA09.50-P-1007-01A
50/3	Oil filler and inspection plug	unscrew. Oil must extend up to not more than lower edge of threaded hole
		If oil level is too high, severe oil foaming will occur; oil may flow out

Compressor

Number	Designation		Engine 111.943/944/947/973/975
BA09.50-P-1007-01A	Oil filler and inspection plug	Nm	10

Repair materials

Number	Designation	Order number
BR00.45-Z-1013-06A	Supercharger oil	A 000 989 62 01
