Supercharging function - GF09.00-P-2000G
ENGINE 111.943 /944 /973 /975
Task
Increasing engine output by means of the supercharger particularly in the lower engine speed range.
Design/function

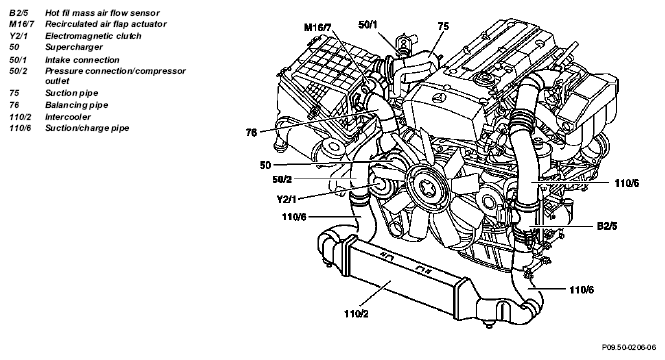

The supercharger compresses the intake air. The air mass is determined downstream of the intercooler and the corresponding quantity of fuel metered to match the increased air mass.
| Control module (HFM-SFI) position/task/design/function | GF07.51-P-4103D | ||
| ME-SFI control module position/task/design/function | GF07.61-P-5000F | ||
| Crankshaft position sensor position/task/design/function | GF07.04-P-4116F | ||
| EA/CC/ISC actuator position/task/design/function | GF30.22-P-4010F | ||
| Compressor control function | GF09.50-P-3100G | ||
| Recirculated air flap actuator position/task/design/function | GF09.50-P-3101G | ||
| Compressor position/task/design/function | GF09.50-P-3102G | ||
| Intercooler position/task/design/function | GF09.41-P-3100C | ||
| Hot film mass air flow sensor position/task/design/function | GF07.07-P-4118G | ||
| Supercharger control function | GF09.50-P-3001G | ||
| Supercharger boost pressure control function | GF09.50-P-3002G |
