Magnetic clutch for the mechanical supercharger location/task/design/function - GF09.50-P-3103H: Notes
ENGINE 112.960 in MODEL 170.466
ENGINE 112.961 in MODELS 203.065 /265

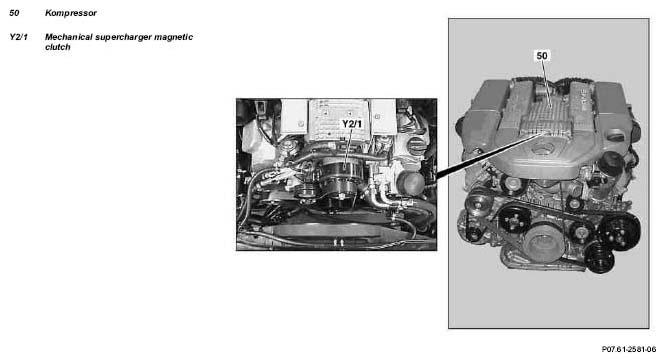

| Magnetic clutch for the mechanical supercharger - location | The magnetic clutch for the mechanical supercharger is attached to a flange at the front on the compressor at the same height as the Vbelt. | ||
| Magnetic clutch for the mechanical supercharger - task | To switch the compressor on and off quietly according to the load and speed of the engine. | ||
| Magnetic clutch for the mechanical supercharger - design | GF09.50-P-3103-03H | ||
| Magnetic clutch for the mechanical supercharger - function | Once the magnetic clutch is actuated by an ground signal from the ME control unit a magnetic field is generated between the anchor and the rotor by the solenoid coil. This creates a powerful connection between the frictional layers on the anchor and rotor. The power uptake for this is about 47 W. |
