Low temperature cooler position/task/design/function - GF09.41-P-3103H
>>
Position of the low temperature cooler - GF09.41-P-3103-01H
Position of the low temperature cooler - GF09.41-P-3103-01H
Low temperature circuit

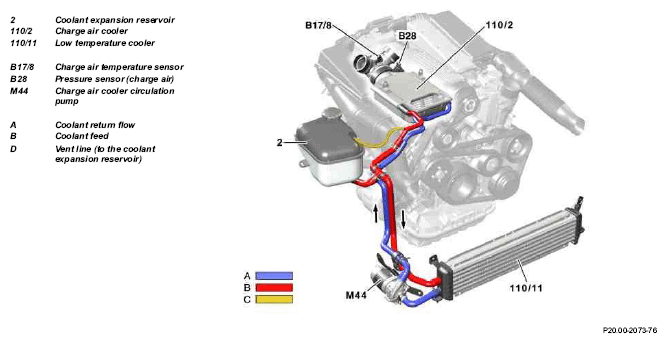

Fig 1: Locating Low Temperature Cooler
