Low temperature cooler position/task/design/function - GF09.41-P-3103H: Notes
ENGINE 112.960 in MODEL 170.466
ENGINE 112.961 in MODELS 203.065 /265

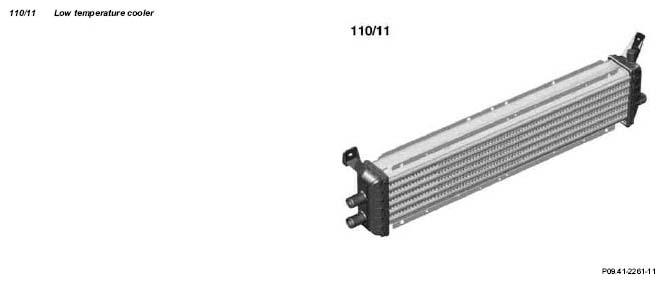

| Position of the low temperature cooler | GF09.41-P-3103-01H | ||
| Task of the low temperature cooler | The coolant which is heated in the charge air cooler is cooled again in the low temperature cooler circuit. | ||
| Design of the low temperature cooler | The low temperature cooler is designed as an air/fluid heat exchanger. | ||
| Function of the low temperature cooler | The airstream flows over the numerous cooling fins and thus cools the liquid flowing through the low temperature cooler. A higher efficiency is achieved compared to air cooled charge air coolers by water cooling the charge air. |
