Coupling assignment for control module (ABS, ASR, ETS) - AD42.00-P-2000-03A

Assignment to coupling 1

(interior wiring harness) and coupling 3 (CAN data bus) for ABS, ETS, ASR control module (N47-7, N47-2, N47-1)

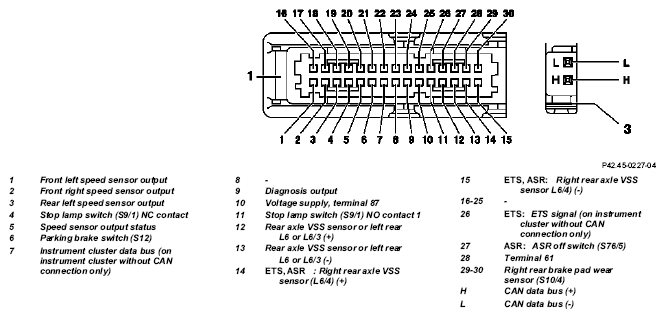

Fig 1: Identifying Coupling 1 Assignment For Control Module

Assignment to coupling 2 (engine wiring harness) for ABS, ETS, ASR control module (N47-7, N47-2, N47-1)

Part 1

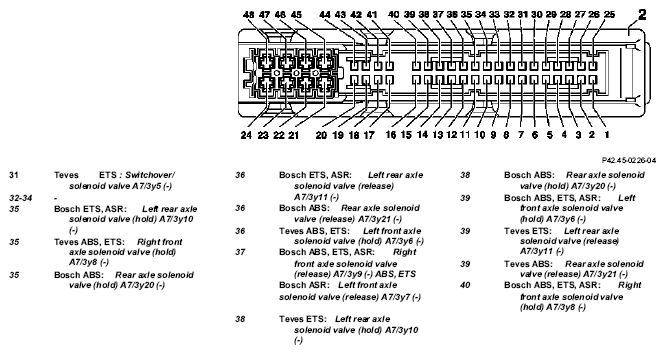

Fig 2: Identifying Coupling 2 Assignment For Control Module - Part 1

Assignment to coupling 2 (engine wiring harness) for ABS, ETS, ASR control module (N47-7, N47-2, N47-1)

Part 2

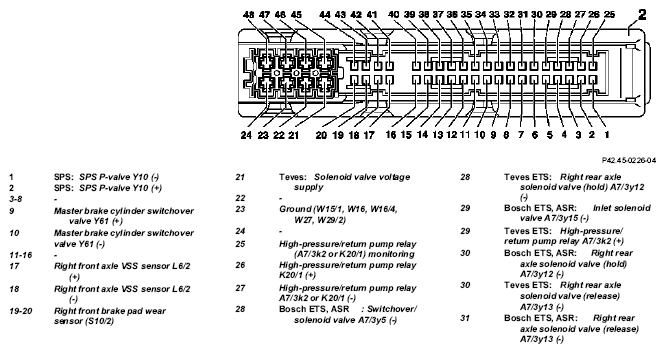

Fig 3: Identifying Coupling 2 Assignment For Control Module - Part 2

Assignment to coupling 2 (engine wiring harness) for ABS, ETS, ASR control module (N47-7, N47-2, N47-1)

Part 3

Fig 4: Identifying Coupling 2 Assignment For Control Module - Part 3
