Brakes -- Basic Knowledge -- 170 Chassis
>>
Basic Knowledge
>>
Anti-lock brake system (ABS), function - GF42.30-P-0003A
>>
Anti-lock brake system (ABS), location of electrical/electronic components - GF42.30-P-0003-09C
Anti-lock brake system (ABS), location of electrical/electronic components - GF42.30-P-0003-09C
Model 170

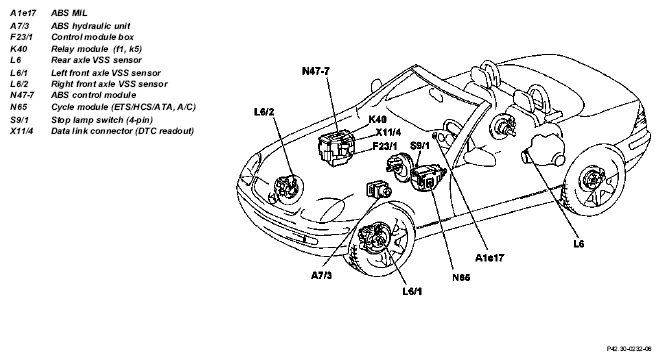

Fig 1: Locating Anti-Lock Brake System (ABS) Electrical/Electronic Components
