Vario roof solenoid valves, location/purpose - GF77.37-P-3020G

MODEL 170

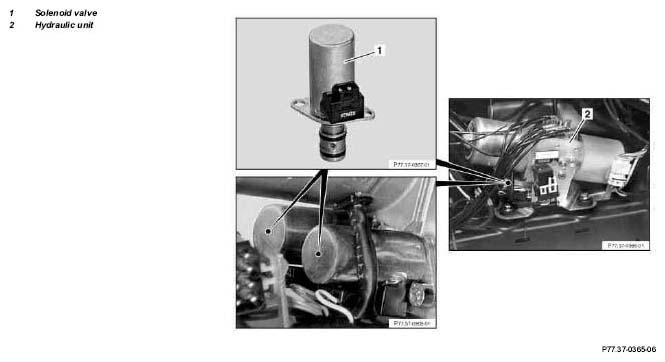

Fig 1: Identifying Vario Roof Solenoid Valve And Hydraulic Unit
G04744106
  Location In pump carrier for hydraulic unit
  Purpose To distribute hydraulic fluid to hydraulic cylinders depending on roof actuation
