Vario roof hydraulic cylinder front lock actuation, location/ purpose - GF77.37-P-3030G

MODEL 170

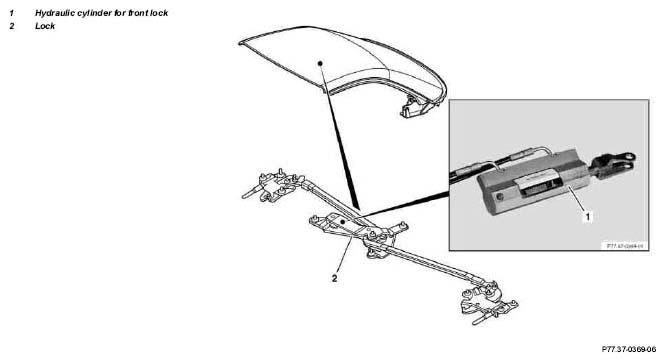

Fig 1: Identifying Hydraulic Cylinder For Front Lock
G04744107
  Location In lock at front of Vario roof
  Purpose To lock and unlock Vario roof at front
