Vario roof catch for front lock, location/purpose - GF77.33-P-3070G

MODEL 170

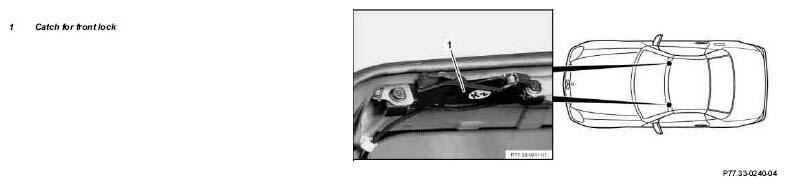

Fig 1: Identifying Vario Roof Catch For Front Lock
G04744101
  Location On cross member above windshield
  Purpose To provide catch for lock on Vario roof
