Vario roof "locked" limit switch (left rotary tumbler), location/purpose - GF77.39-P-3003G
MODEL 170

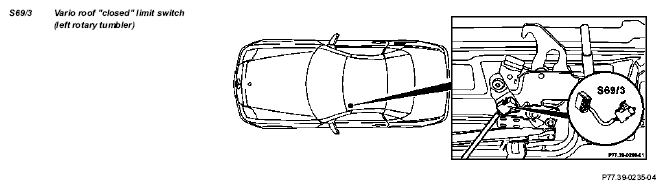

| Location | On Vario roof at front left | ||
| Purpose | To connect ground signal through to combination control module (N10-3) as soon as left rotary tumbler has locked. The Vario roof "locked" limit switch (left rotary tumbler) is connected in parallel to the Vario roof "locked" limit switch (right rotary tumbler). | ||
| Vario roof "locked" limit switch (right rotary tumbler) Purpose/location |
GF77.39-P-3002G |
