Removing and installing paneling on rear center piece - AR68.30-P-4785G

MODEL 170

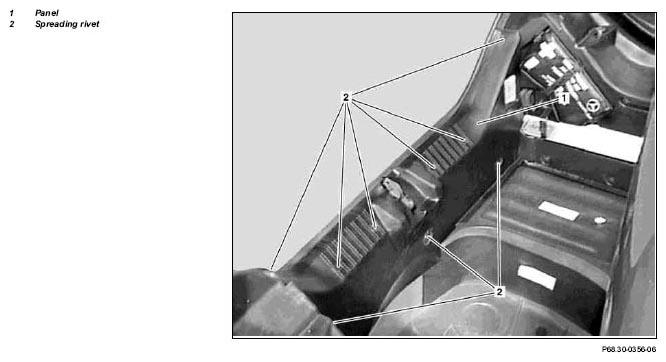

Fig 1: Identifying Paneling On Rear Center Piece Remove/Install Components
G04744066
REMOVINGINSTALLING Removal, installation
1 Open trunk lid
2 Remove spreading rivet (2) and remove panel (1)
3 Reinstall in opposite order
