Removing and installing paneling in footwell - AR68.30-P-4010G

MODEL 170

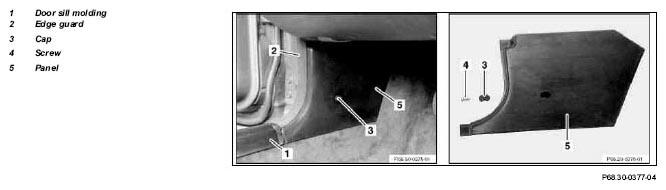

Fig 1: Identifying Paneling In Footwell Remove/Install Components

	Removal, installation
1	Remove door sill molding (1)	(4 insert clips)
2	Pull off edge guard (2) in area of paneling (5)
3	Remove cap (3) with small screwdriver
4	Unscrew screw (4)
5	Remove panel (5)
6	Reinstall in opposite order
