Removing and installing cover on instrument cluster - AR68.10-P-1550G
MODEL 170
| Removal, installation | |||
| 1 | Remove steering wheel | AR46.10-P-0100B | |
| 2 | Remove cover below instrument panel (driver's side) | AR68.10-P-1500G | |
| 3 | Remove coil for transponder | AR80.30-P-4515G | |

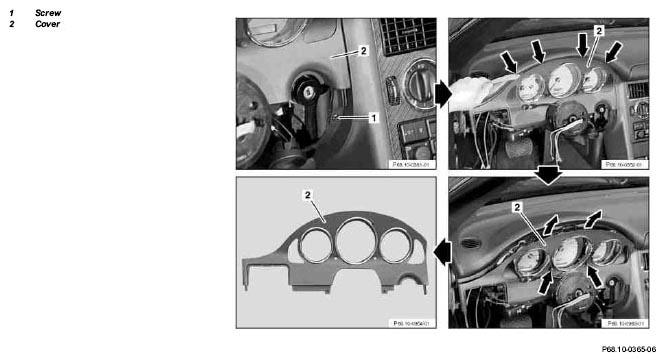

| 4 | Unscrew screw (1) | ||
| 5 | Unclip cover (2) at top with long wedge | Figure | |
| 6 | Tip cover (2) toward rear at top, lift over jacket tube covering and simultaneously guide adjustment knobs (arrow) through cover (2) | ||
| 7 | Remove cover (2) | ||
| 8 | Reinstall in opposite order |
