Removing and installing cover on center console - AR68.20-P-2350G
MODEL 170

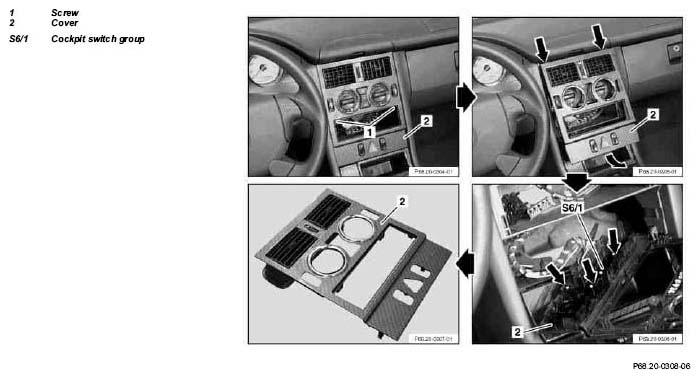

| Removal, installation | |||
|---|---|---|---|
| 1 | Remove radio | AR82.60-P-7502EA | |
| 2 | Unscrew screws (1, 2 each) in radio cutout | ||
| 3 | Pull cover (2) toward rear and pull out at top on instrument panel (arrow) (2 hooks) | ||
| 4 | Unclip cockpit switch group (S6/1) at catch lugs (4 each) | ||
| 5 | Remove cockpit switch group (S6/1) from cover (2) | ||
| 6 | Lay down cover (2) | ||
| 7 | Reinstall in opposite order |
