Removing and installing cover below instrument panel (right) - AR68.10-P-1520G

MODEL 170

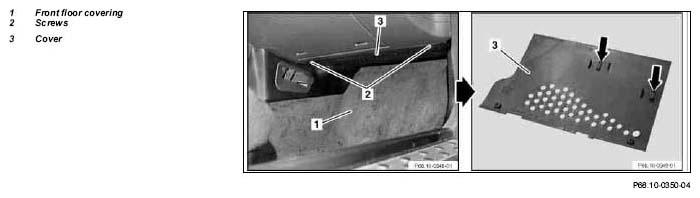

Fig 1: Identifying Right Cover Below Instrument Panel Remove/Install Components - Model 170

	Removal, installation
1	Fold back front floor covering (1)
2	Unscrew screws (2)
3	Pull cover (3) out toward rear	When installing insert the two tabs (arrow) at the front of the heater housing
4	Reinstall in opposite order
