Removing and installing cradle for cellular telephone - AR82.70-P-8918G
MODEL 170 from 1.7.98 to 30.6.00 with CODE (317) GSM cellular telephone (D2B) Cradle for cellular telephone in armrest or stowage compartment

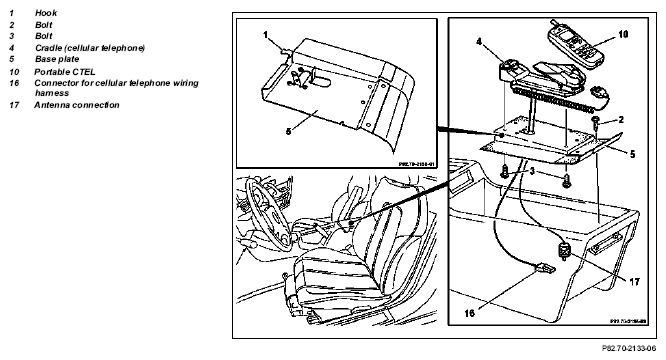

| Removing, installing | |||
| 1 | Open stowage compartment | ||
| 2 | Remove cellular telephone (10) from cradle (4) | ||
| 3 | Unscrew screws (2) | ||
| 4 | Lift base plate (5) at rear and pull toward rear | ||
| 5 | Separate connector for cellular telephone wiring harness (16) and antenna connection (17) | ||
| 6 | Unscrew screws (3) | ||
| 7 | Remove cradle (4) | ||
| 8 | Install in the reverse order |
